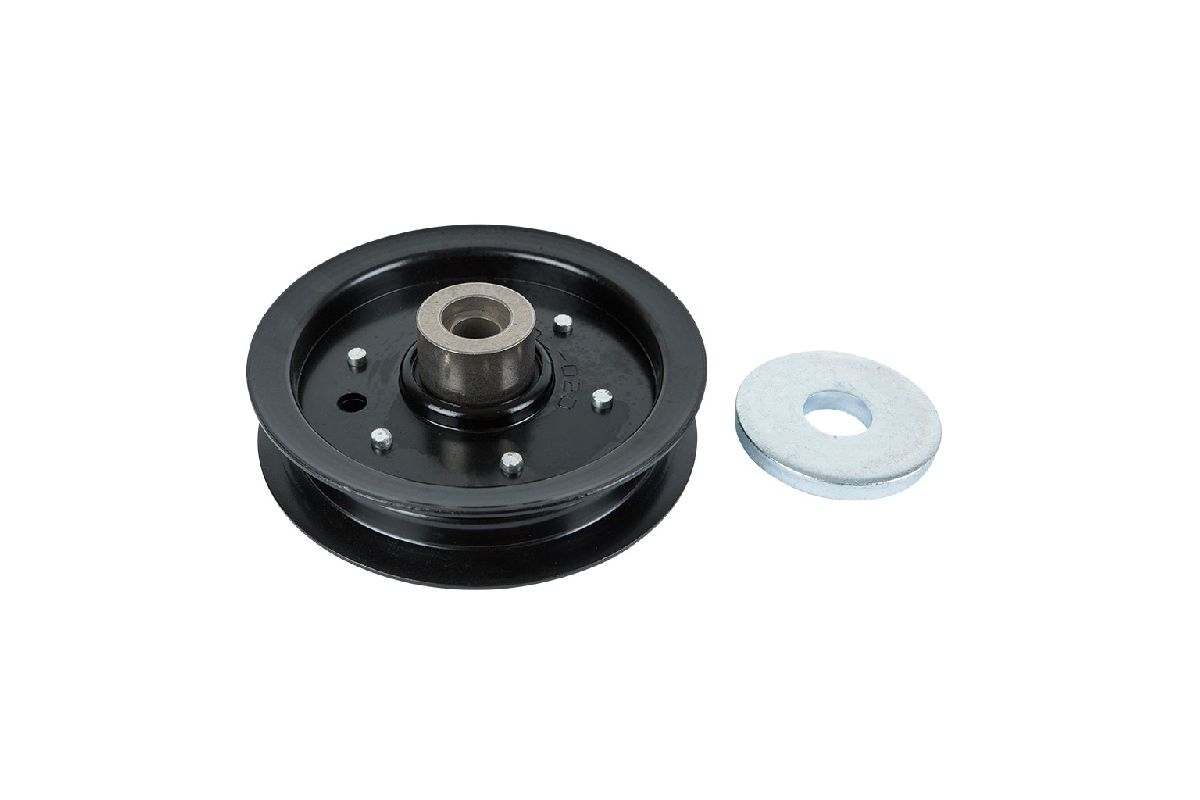

Hustler Flat Steel Idler Pulley Suits Selected Dash & Raptor
Features
| Fits: | HUSTLER selected models including but not limited to 34" (863 mm) cut Dash XD (model 940742EX years 2020 to 2021), 36" (915 mm) cut Raptor SD (models 935262EX year 2016 and 938365EX years 2018 to 2020), 42" (1067 mm) cut Dash XD (model 940759EX year 2020), Raptor (models 933465EX years 2014 to 2015, 934679EX years 2014 to 2015 and 938332EX year 2018), Raptor SD (model 935270EX year 2015), Raptor X (model 940494EX years 2020 to 2022), Raptor XD (model 939819EX year 2020), 48" (1220 mm) cut Dash XD |
|---|
| Fits: | BigDog selected models including but not limited to 42" (1067 mm) cut Alpha (models 932897EX year 2013, 933416EX years 2013 to 2015, 934489EX years 2016 to 2017 and 939140EX year 2018), 48" (1220 mm) cut BigDog Alpha MP (model 936526EX year 2016) and 52" (1320 mm) cut BigDog Alpha (models 932913EX year 2015 and 939124EX year 2018) zero turn radius (ZTR) ride-on models as a deck idler pulley. |
|---|
| Pulley Height : (mm) | 27.67 mm |
|---|
| Pulley Height : (inches) | 1.089" |
|---|
| Pulley Dimension T: (mm) | 2 mm |
|---|
| Pulley Dimension T: (inches) | 0.078" |
|---|
| Pulley Dimension A: (mm) | 123.90 mm |
|---|
| Pulley Dimension B: (inches) | 3.937" |
|---|
| Pulley Dimension B: (mm) | 100 mm |
|---|
| Pulley Dimension C: (inches) | 1/2" |
|---|
| Pulley Dimension C: (mm) | 12.70 mm |
|---|
| Pulley Dimension D: (inches) | 0.767" |
|---|
| Pulley Dimension D: (mm) | 19.50 mm |
|---|
| Inside Diameter: (inches) | 1/2" |
|---|
| Inside Diameter: (mm) | 12.70 mm |
|---|
| Hole Size: (inches) | 1/2" |
|---|
| Hole Size: (mm) | 12.70 mm |
|---|
| Outside Diameter: (inches) | 4.877" |
|---|
| Outside Diameter: (mm) | 123.90 mm |
|---|
| Pulley Diameter: (inches) | 4.877" |
|---|
| Pulley Diameter: (mm) | 123.90 mm |
|---|
| Pulley Dimension A: (inches) | 4.877" |
|---|
| Deck (cm) | Selected 86.3 cm, 91.5 cm, 106.7 cm, 122 cm, 132 cm, 137.2 cm Cut. |
|---|
| Deck (inches) | Selected 34", 36", 42", 48", 52", 54" Cut. |
|---|
| Deck (mm) | Selected 863 mm, 915 mm, 1067 mm, 1220 mm, 1320 mm, 1372 mm Cut. |
|---|
| Height: (inches) | 1.089" |
|---|
| Height: (mm) | 27.67 mm |
|---|
| HUSTLER: 126123, 604219, 607480, |
|---|
| Description: | Non-Genuine BigDog, HUSTLER Deck Flat Idler Pulley - Steel |
|---|
| Replaces OEM: | BigDog: 126123, 604219, 607480, |
|---|
| (model 940767EX year 2020 to 2021), Raptor Flip-Up (model 935288EX year 2016), Raptor SD (models 932566EX years 2014 to 2015, 936542EX year 2016 and 938399EX years 2018 to 2020), Raptor XD (model 940510EX year 2020), 52" (1320 mm) cut Raptor (931899EX year 2015), 54" (1372 mm) cut Raptor X (model 940502EX year 2020) and Raptor XD (model 939751EX year 2020) zero turn radius (ZTR) ride-on models as a deck idler pulley. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Brand: | BigDog Non-Genuine, HUSTLER Non-Genuine, |
|---|
| Product Line: | Deck Idler Pulley, Flat Idler Pulley, Idler Pulley, Pulley Flat Idler, Pulley - Idler, Steel Idler Pulley, |
|---|
